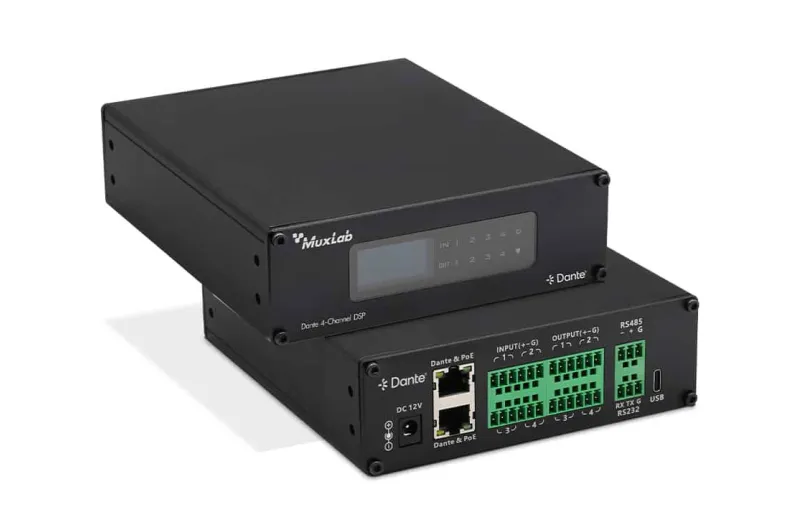

Muxlab Dante 4-Channel Audio DSP
125.220
Muxlab Dante 4-Channel Audio DSP, a professional audio processor designed for Dante network environments, providing low-latency, high-quality transmission, routing, and processing of audio signals. It features 4 balanced analog inputs and 4 balanced analog outputs, Dante digital audio I/O, and an integrated USB audio card, delivering excellent flexibility for professional audio installations.
€1,101.68
Tax included
Muxlab Dante 4-Channel Audio DSP, a professional audio processor designed for Dante network environments, providing low-latency, high-quality transmission, routing, and processing of audio signals. It features 4 balanced analog inputs and 4 balanced analog outputs, Dante digital audio I/O, and an integrated USB audio card, delivering excellent flexibility for professional audio installations.
It supports 4-way balanced analog input and output, along with 4 Dante digital audio inputs and 4 Dante digital audio outputs, enabling flexible routing between analog and networked audio channels.
The device incorporates a comprehensive DSP feature set including AEC (Acoustic Echo Cancellation), AFC, ANC, Ducker, Compressor, Limiter, Mixer, and Graphic Equalization, providing the tools needed to optimize audio performance in conferencing and multi-zone audio environments. It also supports 48VDC phantom power on the input side for use with compatible microphones, and includes a built-in USB sound card supporting one channel of audio input and one channel of audio output for computer-based audio connectivity.
Power can be supplied either via PoE from a PoE network switch or through a 12V DC power supply, offering flexibility during installation. In addition, all DSP functions can be monitored and controlled through Windows-based software, while an API for RS232, RS485, and TCP/IP control is provided for integration with broader AV automation systems.
Specifications
Dante 4-Channel Audio DSP
Designed for audio transmission, routing, and processing in Dante networks
4 balanced analog inputs and 4 balanced analog outputs
4 Dante digital audio inputs and 4 Dante digital audio outputs
Built-in USB audio card with 1 input / 1 output
Supports PoE or 12V DC power supply
Supports 48VDC phantom power on input
DSP functions include AEC, AFC, ANC, Ducker, Compressor, Limiter, Mixer, and Graphic EQ
Managed via Windows software
Includes API for RS232, RS485, and TCP/IP control
Supports AES67 RTP audio transport
Designed for audio transmission, routing, and processing in Dante networks
4 balanced analog inputs and 4 balanced analog outputs
4 Dante digital audio inputs and 4 Dante digital audio outputs
Built-in USB audio card with 1 input / 1 output
Supports PoE or 12V DC power supply
Supports 48VDC phantom power on input
DSP functions include AEC, AFC, ANC, Ducker, Compressor, Limiter, Mixer, and Graphic EQ
Managed via Windows software
Includes API for RS232, RS485, and TCP/IP control
Supports AES67 RTP audio transport
- Condition
- New
- EAN
- 627699015568
- MPN
- 500556-V2
