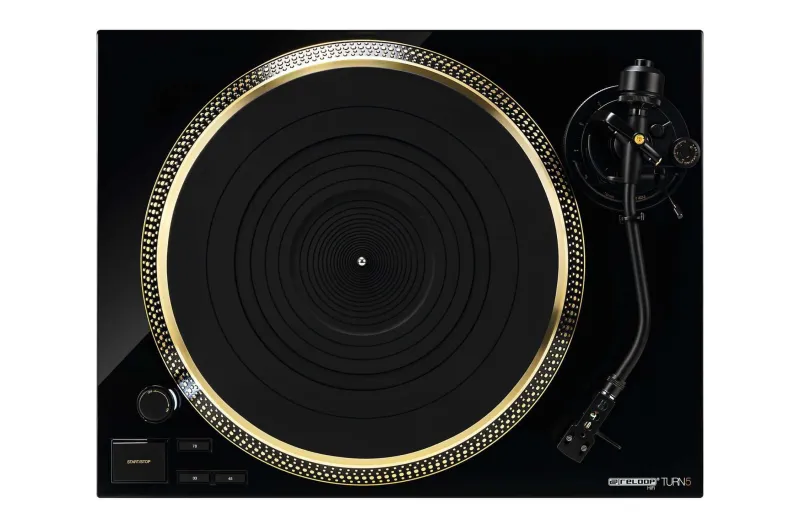

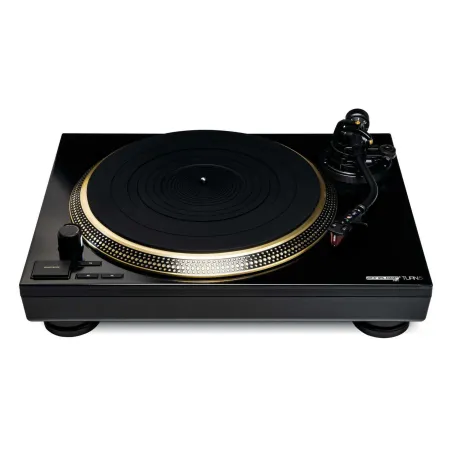

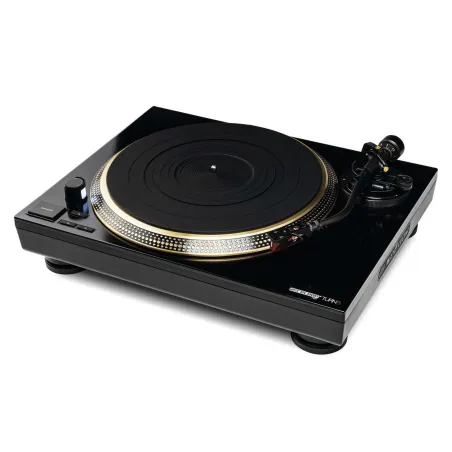

Reloop Turn5

Χαρακτηριστικά:

Πικάπ:

• Type: Direct Drive Manual Turntable System


• Drive: Quartz driven upper-torque direct drive


• Motor: 16pole, 3phase, brushless DC motor


• Turntable Speeds: 3 speeds, fully manual (33 1/3, 45, 78 rpm)


• Starting Torque: 4500 g/cm


• Start-up time / rpm change: less than 0.2 sec.


• Wow and flutter: 0.01% WRMS


• S/N Ratio: More than 55dB (DIN-B)


• Brake system: electronic brake

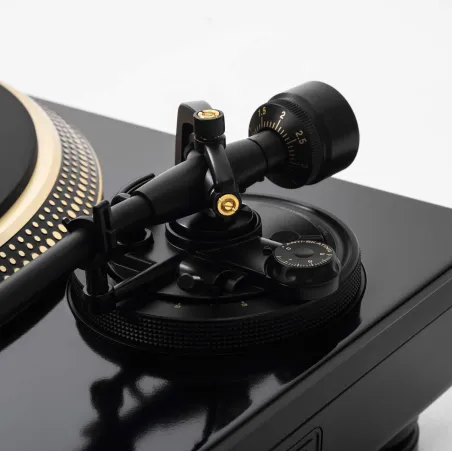

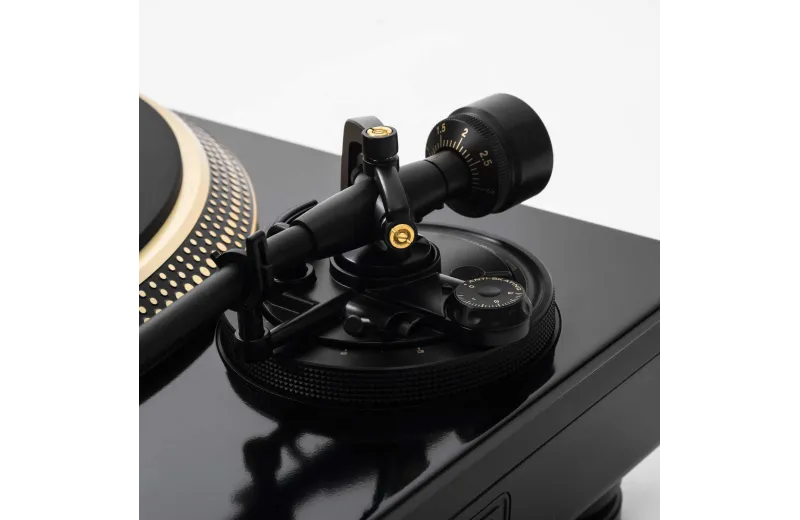

Βραχίονας:

• Type: Universal Static Balanced S-Shaped


• Effective Length: 230mm


• Overhang: 15mm


• Tracking Error Angle: Less than 3 degree


• Adjustable Tonearm Base (VTA): 0-6 mm


• Applicable Cartridge Weight: 3.5~8.5g (including headshell is 13~18g)


• Anti-Skating Range: 0 – 3g


• Effective tonearm mass: 30g

Turntable Platter:

• Material: aluminium die-cast


• Diameter: 332mm


• Weight: About 1.8kg (including rubber mat)

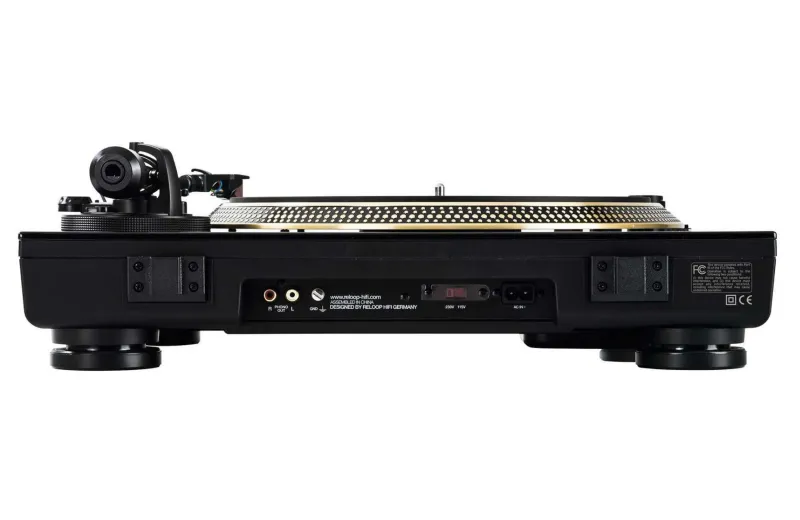

Terminals:

• 1x PHONO Out (gold-plated)


• 1x GND Earth Terminal

Παρελκόμενα συσκευασίας:

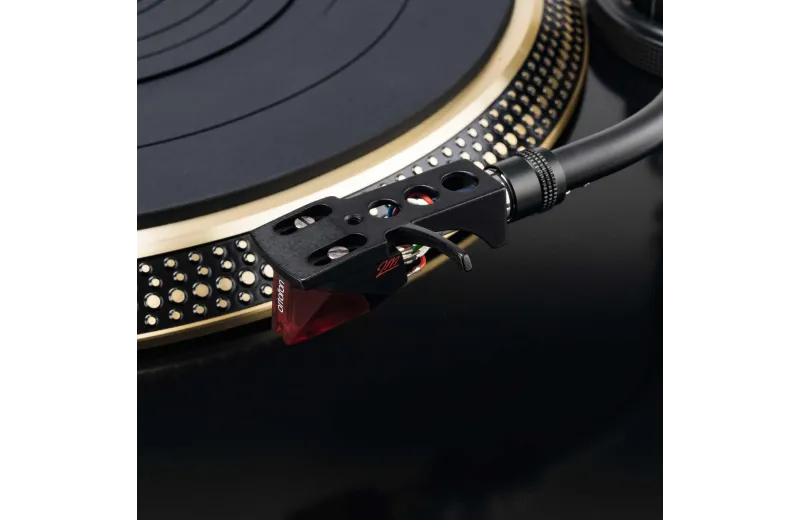

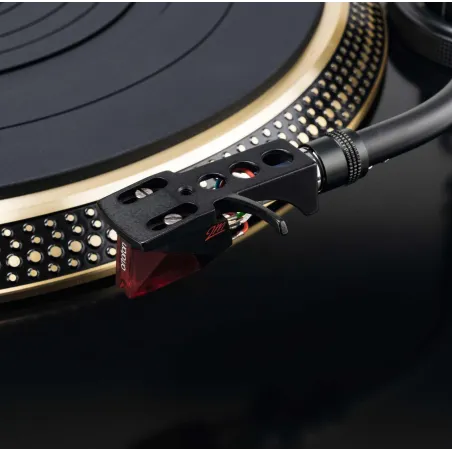

Turntable Platter, Dust Cover, 2x Dustcover hinges, Balance Counter Weight, PHONO RCA Cable with earth lead, AC power supply cord, Rubber Mat, Instruction Manual, Ortofon 2M Red cartridge & headshell

Τροφοδοσία: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)
Κατανάλωση: 9W
Διαστάσεις WxDxH: 458 x 368.3 x 162.4 mm
Βάρος: 12.8kg
